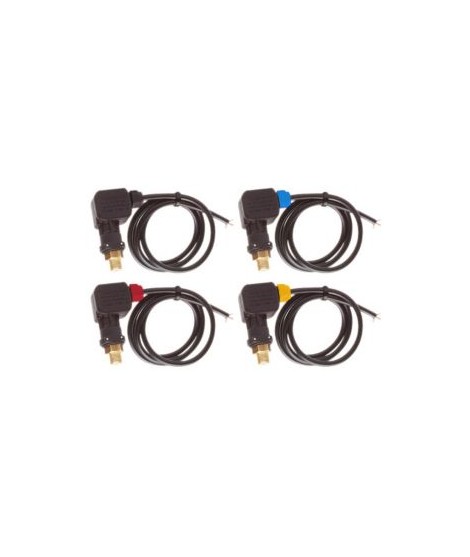

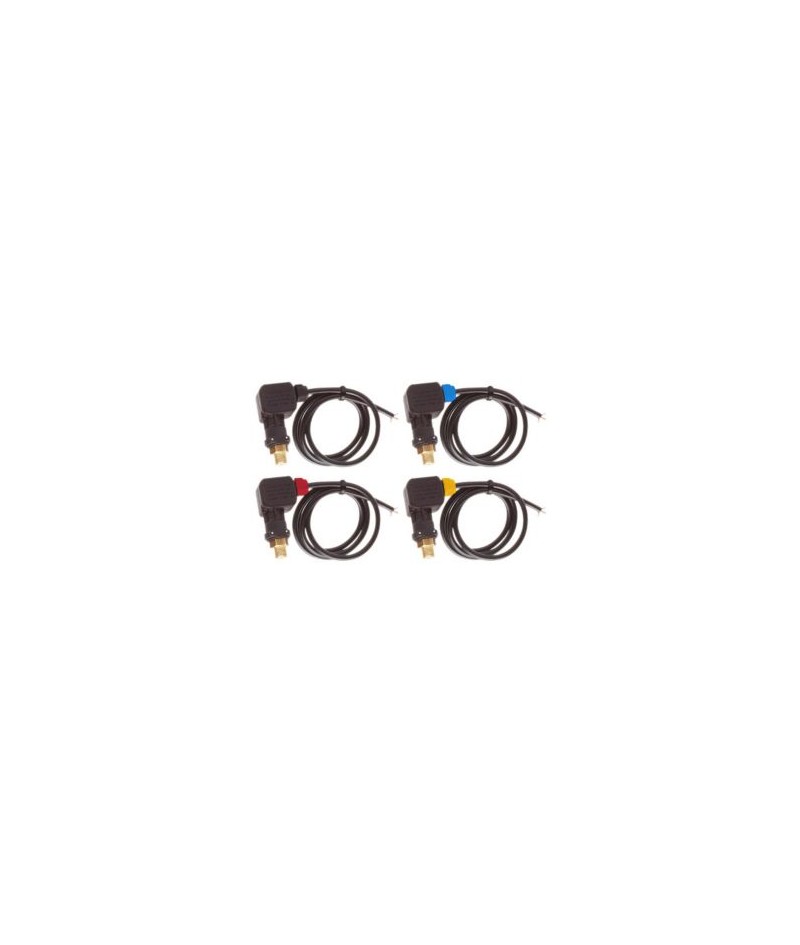

PR5 Red Pressure Switch
€33.83 tax incl.
PR5 Red Pressure Switch
New product
| Common Features | |
| Rated Pressure | 250 bar - 25 MPa - 3650 psi |
| Permissible Pressure | 280 bar - 28 MPa - 4050 psi |
| Rated Temperature | 90 °C - 195 °F |
| Max. Voltage | 250 V |
| Max. Curr. Strenght | 6 (2) A |
| Electrical insulation | 55 IP |
| Material | Brass |
| P/N | Inlet | Operat. press. | Col. | Weight |
| 29.0080.55 | 1/8 Bsp M | 40 bar - 4 MPa - 580 psi | Black | 136 gr - 4,8 oz |
| 29.0080.18 | 1/8 Bsp M | 25 bar - 2,5 MPa - 360 psi | Red | 134 gr - 4,73 oz |
| 29.0080.05 | 1/8 Bsp M | 15 bar - 1,5 MPa - 220 psi | Blue | 130 gr - 4,6 oz |
| 29.0080.75 | 1/8 Bsp M | 10 bar - 1 MPa - 140 psi | Yellow | 138 gr - 4,87 oz |
| 29.0080.50 | 1/4 Bsp M | 40 bar - 4 MPa - 580 psi | Black | 139 gr - 4,9 oz |
| 29.0080.00 | 1/4 Bsp M | 25 bar - 2,5 MPa - 360 psi | Red | 137 gr - 4,83 oz |
| 29.0080.10 | 1/4 Bsp M | 15 bar - 1,5 MPa - 220 psi | Blue | 137 gr - 4,83 oz |
| 29.0080.80 | 3/8 Bsp M | 40 bar - 4 MPa - 580 psi | Black | 148 gr - 5,22 oz |
| 29.0080.85 | 3/8 Bsp M | 25 bar - 2,5 MPa - 360 psi | Red | 145 gr - 5,11 oz |
| 29.0080.88 | 3/8 Bsp M | 15 bar - 1,5 MPa - 220 psi | Blue | 146 gr - 5,15 oz |
| Common Features | |
| Rated Pressure | 250 bar - 25 MPa - 3650 psi |
| Permissible Pressure | 280 bar - 28 MPa - 4050 psi |
| Rated Temperature | 90 °C - 195 °F |
| Max. Voltage | 250 V |
| Max. Curr. Strenght | 6 (2) A |
| Electrical insulation | 55 IP |
| Material | Brass |
Technical Documentation
PR 5 - CE Technical Manual - 802
PR5 - Declaration of Conformity
DIRECTIVE 2011/65/CE RoHS 2 - Category of AEE specification of the RoSH 2
